DE620 Card Encoder
ITEMSPECIFICATION
RF card protocolISO-14443 A/B, Mifare, FeliCa, ISO-18092, ISO-15693
PC interfaceUSB 2.0
Input powerDC5V, 200mA
Operation temperature0℃~ 50℃
AP300 Wireless Access Point
ITEMSPECIFICATION
Communication with ServerTCP/IP (standard), WIFI (IEEE 802.11b/g/n standards Transceiver, Optional)
2.4Ghz Wireless(ONLINE LOCK COMM)
MaterialPolycarbornate
SecurityAES128
IndicatorLED
Effective rangeAbout 50 meters in open area (without barrier)
Communication Frequency
with locks
2.4GHz IEEE 802.15.4 Compliant RF Transceiver 40-50M (Between Lock and AP)
Dimension101.60 * 101.60 * 27.50 (mm)
Input PowerDC 12V Adapter, POE (IEEE802.3af)
Operation temperature0°C ~ 50°C (Operating), -40°C~85°C(Storage)
CertificateCE, FCC

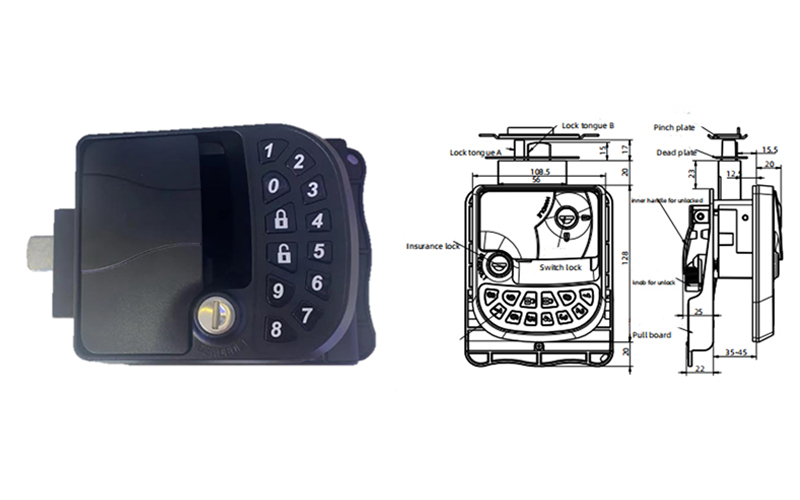

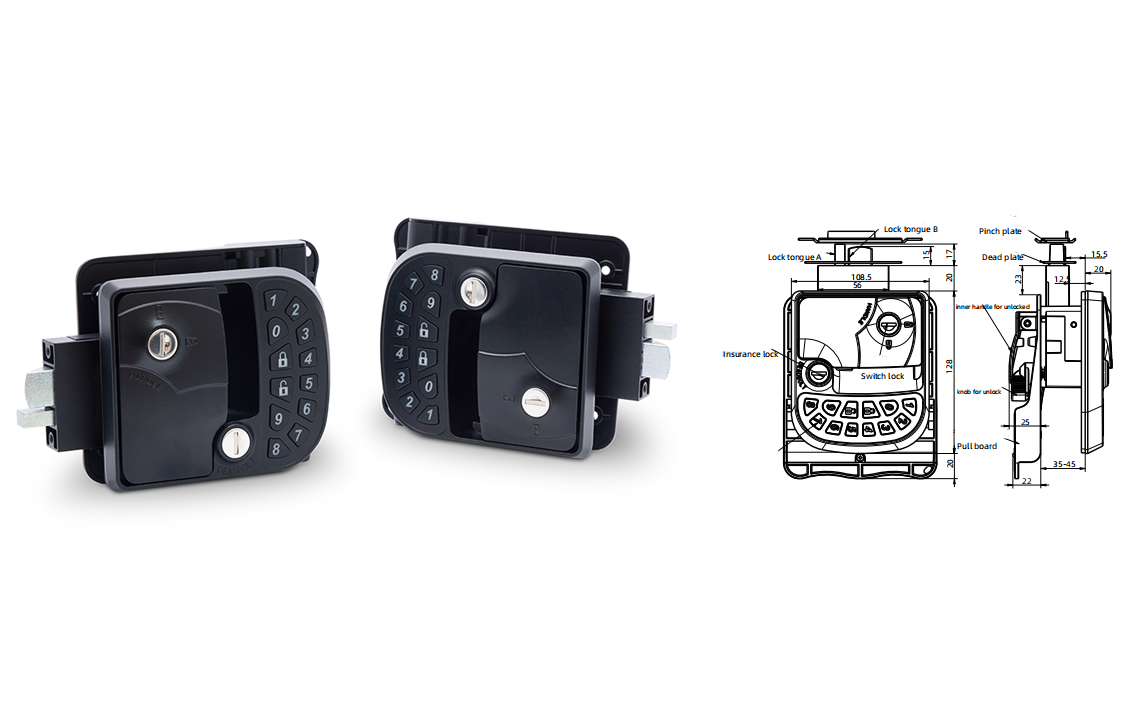

SL300A Smart Door Lock
ITEMSPECIFICATION
PowerDC 4.5V
CredentialRFID card, Mobile Key, Smartcode
Communication Protocol1. RFID Card: ISO 14443 A/B, Mifare, Desfire
2. Mobile Access: BLE 4.0

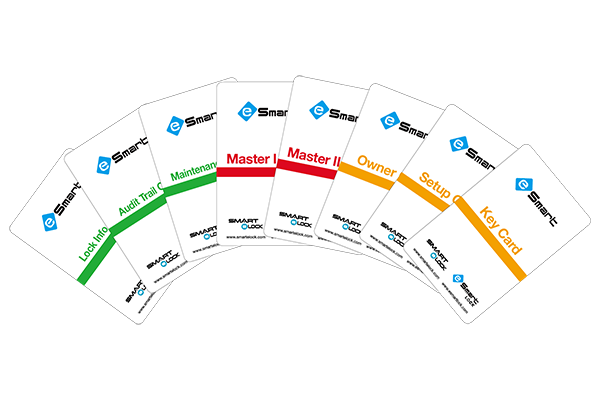

Credentials
Standard Wristbands RF Cards
Material Sillicone PVC
Dimension L 28mm x W 18mm x T 2mm L 85.6mm x W 54mm x T 0.86mm
Color Blue, Violet, Red As on image
RFID Chip ISO 14443 A Mifare
External battery pack
ITEM Emergency Pack EP100
Power AA Battery X 4, 6V
Switch On / Off On / Off
Dimension 65x68x20mm 42x37x145mm
Master Key Fimction X O
Info Terminal & Wall Reader (iTouchpopX)
ITEMSPECIFICATION
RF card protocolMifare, ISO 14443 A/B, ISO 18092 (NFC), Mifare, DESFire, FeliCa, Mobile Key (Optional)
Frequency13.56 MHz
LCD4.3”TFT wide(800X480)
TouchResistive touch
Dimension163*65*35mm
Input powerDC9~24V (9V/2A)
Operation temperature-10 ~ 60℃
Info Terminal & Wall Reader
ITEM SPECIFICATION
Power DC 12V
Credential RFID Card, Mobile Key
Communication Protocol 1. RFID Card: ISO 14443 A/B, Mifare, Desfire
2. Mobile Access: BLE 4.0
3. Info Terminal Display(Locker No., Valid Date / Time)
