e-Smart Flex Series (RFID Furniture Locks)

e-Smart Flex is flexible for any usage in the office environment.

e-Smart Flex offers different types of locks that can be used for a different door types which gives you the ability to install them based on your tastes and needs.

e-Smart Flex Series
(RFID Furniture Locks)

e-Smart Flex is flexible for any usage in the office environment.

e-Smart Flex offers different types of locks that can be used for a different door types which gives you the ability to install them based on your tastes and needs.

FX100WR

e-Smart Flex battery (CR123A) type side lock, FX100WR has all online features from Ultra lock systems with hidden lock option.

FX200WR

e-Smart Flex wired power type lock, FX200WR has all online features from Ultra lock systems with hidden lock option.

It has built-in lighting and USB charging port for user convenience.

FX300WR

e-Smart Flex Furniture one touch lock, FX300WR has all online features from Ultra lock systems with narrow profile.

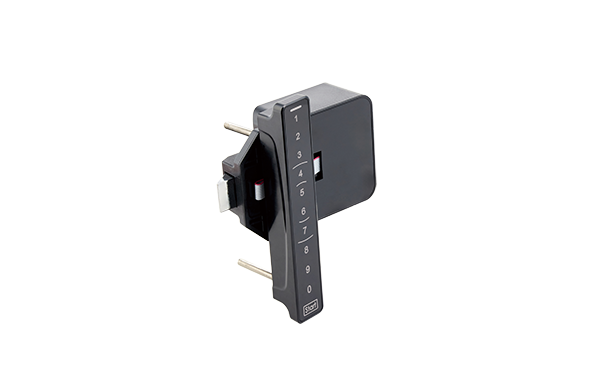

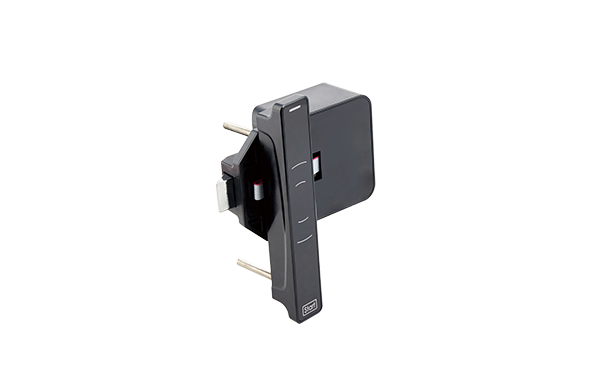

FX400TWR

e-Smart Flex Furniture touch keypad lock, FX400TWR has all online features from Ultra lock systems with narrow profile.

Main Features
Springlatch
Deadbolt
Durable and Enhanced design (IP55)
High impact polycarbonate/Metal housing & waterproof case (IP55)
Aluminum die-casting locking mechanism Spring Latch & Deadbolt
Audit Trail function
Up to 2,000 lock history events as default (Offline)
Online audit trail (unlimited)
Various operation modes
Free selection (Shared use)
Assigned mode (Permanent use)
Smart-assigned mode (Permanent use)
Bluetooth Mobile Access
Exclusive technology of RF card and smartphone synchronization
User friendly mobile App makes lock operation convenient and simple
Wireless online system
Simple installation eliminating heavy wiring work and cost
Flexible locker relocation
No risk of entire system suspension on the occasion of malfunction of the Server thanks to battery operated independent lock operation from the Server
Central controlling and monitoring through AP
Real-time status monitoring of individual lock or all locks.(Battery status, lock occupancy, alarm, lock event history etc..)
Remote openings/closings (Individual lock, all locks, selected group of locks)
Remote blockings (Selected Card access blockings, Selected Lock access blockings)
Time-based operation
Automatic door opening at programmed time (3 Shift)
Set a time limit on the lock and/or user card (Time Limit)
Flexible and convenient operation
Simple lock programming change or upgrade firmware using RF card and mobile app.
Simple integration into 3rd party systems (access control, etc)
Applied 13.56Mhz RF protocol with various type of credential

Standard ISO PVC Card, Wooden card, FOB(Tag), Wristband, etc.

2~5 years battery life depending on the usage
Approximately 15,000 cycles
Highest Security

Unique security key by AES128 security algorithm

Certified by
Specification
Color
Black / Silver
Power

6V (1.5V AA Battery x 4pcs) / 5V Wired Power (FX200WR) / 3V CR123A (FX100WR)

Access Type

RFID Card / Mobile Access / PIN

RFID Protocol

ISO 14443 Type A/B, Felica, Mifare Classic / Ultralight / DESFire, NFC smartphone, and other types of RF cards are available with reconfiguration

Communication with Transmitter
2.4Ghz Wireless
Case Material
Polycarbonate / Metal
Operating Temperature
-10℃ ~ 60℃
FCC, CE, KC Certified, and ADA Compliant
