e-Smart Classic Series (RFID Standalone Lock)

e-Smart Classic is a flexible standalone offline locking system which enables you to program it easily by RFID setup card/Mobile app. Audit trail and lock information checking functions provide you full control over the system.

e-Smart Classic Series
(RFID Standalone Lock)

e-Smart Classic is a flexible standalone offline locking system which enables you to program it easily by RFID setup card/Mobile app. Audit trail and lock information checking functions provide you full control over the system.

ZP100

One touch RFID Locker Lock ZP100 has been designed to operate with RFID cards and Mobile app (Optional). Owing to its flexibility, ZP100 can be easily installed on the lockers made of different kinds of materials, including metal, glass, wood & laminate etc. A wide range of lock setting options and functions enable to manage the different groups of users efficiently and easily.

ZP200R

RFID Locker Lock ZP200R wakes up with push button. It has been designed to operate with RFID cards and Mobile app (Optional). Owing to its flexibility, ZP200R can be easily installed on the lockers made of different kinds of materials, including metal, glass, wood & laminate etc. A wide range of lock setting options and functions enable to manage the different groups of users efficiently and easily.

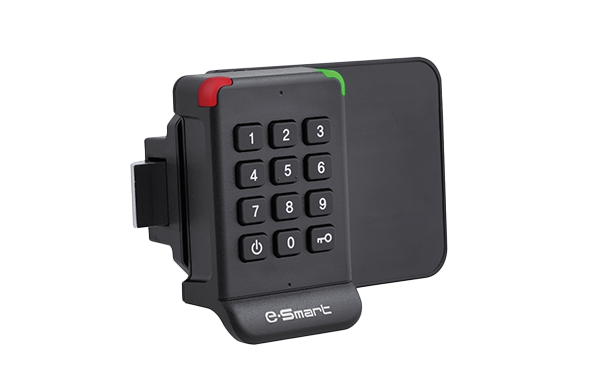

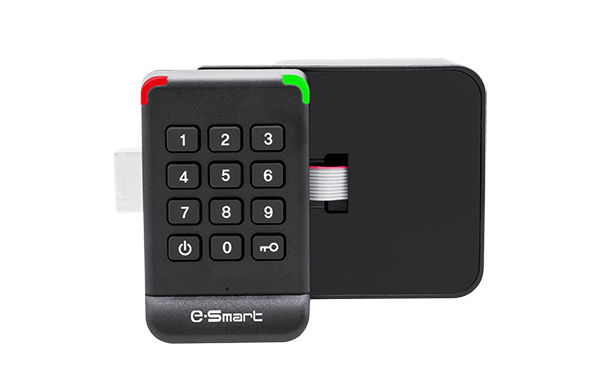

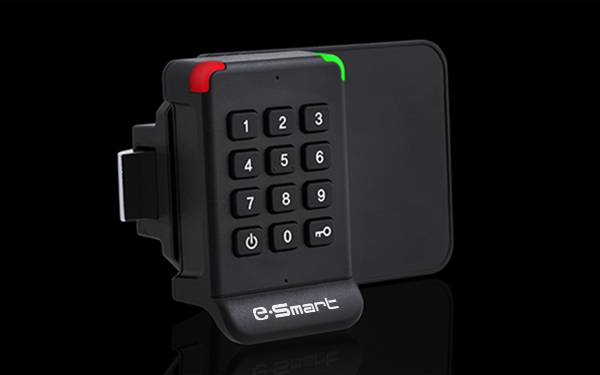

PT300BR

RFID Locker Lock PT300BR operates with RF card/PIN code/Mobile app. PT300BR can be easily installed on the lockers made of different kinds of materials, including metal, glass, wood & laminate etc. A wide range of lock setting options and functions enable to manage the different groups of users efficiently and easily.

PT600B

PT600B, a metal keypad locker lock, operates with PIN code & Mobile app. PT600B can be easily installed on the lockers made of different kinds of materials, including metal, glass, wood & laminate etc. A wide range of lock setting options and functions enable to manage the different groups of users efficiently and easily.

Main Features
Springlatch
Deadbolt
Durable and Enhanced design (IP55)
High impact polycarbonate/Metal housing & waterproof case (IP55)
Aluminum die-casting locking mechanism Spring Latch & Deadbolt
Audit Trail function

Up to 1,000 lock history events as default (offline)

Easy to fit and retrofit
Engineered to work on all standard material doors : Metal, wood & laminate lockers and caseworks
Various operation modes
Free selection(Shared use)
Assigned mode(Permanent use)
Time-based operation
Automatic door opening at programmed time (3 Shift)
Set a time limit on the lock and/or user card (Time Limit)
Bluetooth Mobile Access
Exclusive technology of RF card and smartphone synchronization
User friendly mobile App makes lock operation convenient and simple
Applied 13.56Mhz RF protocol with various type of credential

Standard ISO PVC Card, Wooden card, FOB(Tag), Wristband, etc.

2~5 years battery life depending on the usage
Approximately 15,000 cycles
Flexible and convenient operation
Simple lock programming change or upgrade firmware using RF card and mobile app.
Simple integration into 3rd party systems (access control, etc)
Highest Security
Unique security key by AES128 security algorithm
Certified by
Specification
Color
Black / Silver
Power
6V (1.5V AA Battery x 4pcs)
Access Type

RFID Card / Mobile Access / PIN

RFID Protocol

ISO 14443 Type A/B, Felica, Mifare Classic / Ultralight / DESFire, NFC smartphone, and other types of RF cards are available with reconfiguration

Case Material
Polycarbonate / Metal
Operating Temperature
-10℃ ~ 60℃
FCC, CE, KC Certified, and ADA Compliant
